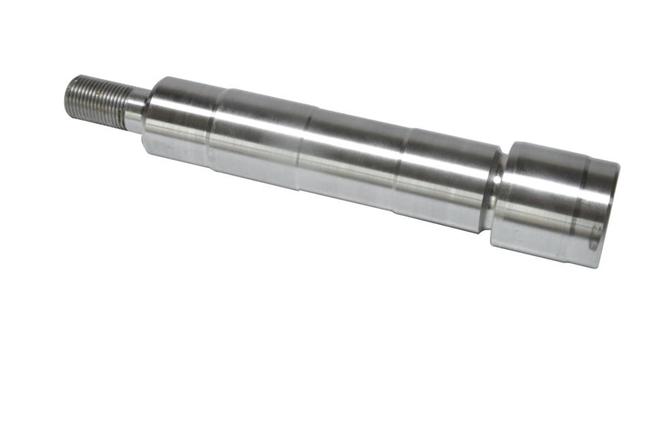

STILL 3024530216 AXLE,PIN - Dingil Pimi

ÖZELLIKLER

Type of axle/pin

Special type King pin

Diameter of the axle/pin (mm)

33.33

Total length of the axle/pin (mm)

260

Diameter of the head (mm)

40

Length (mm)

45.5

Width of the groove/hole (mm)

70

Centre distance between measured hole and edge of axle (lip) (mm)

139

Diameter of holes of the lip (mm)

32

Exterior thread

M18

Pitch metric (mm)

1.5

Interior Thread

M16

Pitch metric (mm)

1.5

Number of grooves

1

Eccentric

NO

Material of the axle/pin

Steel

Hardened

YES

Polished

YES
