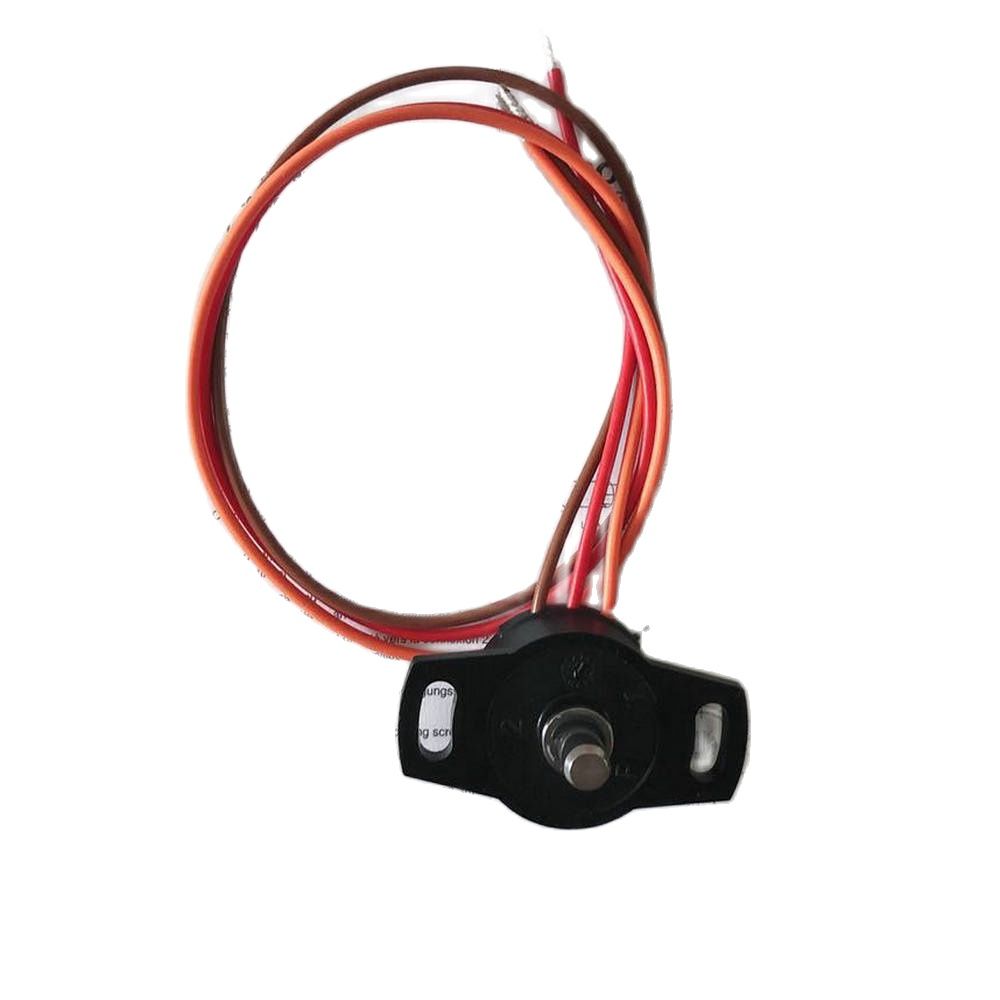

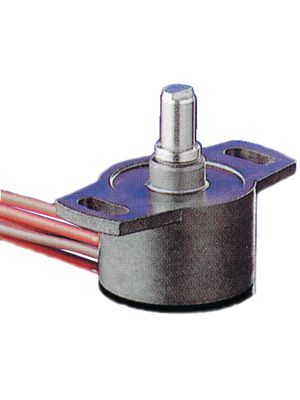

Novo Technick SP2841 308 000 001 Açı Sensörü Potansiyometre

Angular Potentiometer Position Sensor
Type: SP2841 308 000 001
Alternative (Alias): SP 2841-308-000-001
Angle - Electrical: 308 °
Angle - Mechanical: 360 °
Linearity (±): 0.3 %
Operating Temperature Max.: 150 °C
Operating Temperature Min.: -40 °C
Operating Voltage Max.: 42 V
Recommended Operating Wiper Current: 1 µA
Resistance: 5 kΩ
Settable Torque: 0.5 Ncm
Tolerance: 20 %
Angular Position Sensor Output Type: Resistive
Mounting Type: Cable Mount
Protection Rating: IP65
Termination Type: Cable Terminal
