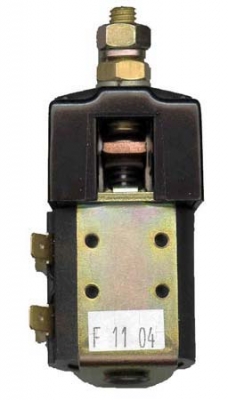

LINDE 7915692090 CONTACTOR COMPLETE

Shape of the contactor

square shape 1

Maximum length of the contactor L1 (mm)

50

Maximum width of the contactor W1 (mm)

45

Maximum height of the contactor H1 (mm)

95

Number of solenoids

1

Voltage of the solenoid (V)

24

Type of current

direct current

Current (A)

100

Sort of operation

continue operation

Pull-in voltage (V)

15.8

Drop-out voltage (V)

2.4

Resistance of the solenoid (Ohm)

51.2

Number of connections on the solenoid

4

Type of connection on the solenoid

blade 6,3mm

Number of contact connections

2

Type of contact connection

outer thread

Outer thread size

M8

Pitch metric of outer thread (mm)

1.25

Right or left handed outer thread

right hand outer thread

Fuse present

NO

External diode present

YES

External resistor present

NO

Number of normal open contacts (NO)

1

Auxiliary contact present

NO

Magnetic blow outs present

NO

Top cover

closed

Shortest center distance between mounting holes C1 (mm)

12.7

Longest center distance between mounting holes C2 (mm)

17.5

Number of closed holes

10

Shape mounting surface

flat

Support present

NO
